為了方便工作的開展，在選擇數控焊接設備類型的時候，要從多個方面綜合來進行考慮，比如說，設備的類型，設備的基本結構等等。下面就詳細為您介紹下設備結構內容。

For the convenience of work, when selecting the type of CNC welding equipment, multiple aspects should be considered comprehensively, such as the type of equipment, the basic structure of the equipment, and so on. Below is a detailed introduction to the equipment structure.

1、焊接電源，其輸出功率和焊接特性應與擬用的焊接工藝方法相匹配，并裝有與主控制器相連接的接口。

1. The output power and welding characteristics of the welding power supply should match the proposed welding process method, and be equipped with an interface connected to the main controller.

2、送絲機及其控制與調速系統，對于送絲速度控制精度要求較高送絲機，其控制電路應加測速反饋。

2. The wire feeder and its control and speed regulation system require high precision in wire feeding speed control. The control circuit of the wire feeder should be equipped with speed feedback.

3、焊接機頭用其移動機構，其由焊接機頭，焊接機頭支承架，懸掛式拖板等組成，低于焊頭機構，其驅動系統應采用裝有編碼器的伺服電動機。

3. The welding head is equipped with a moving mechanism, which is composed of a welding head, a welding head support frame, a suspended carriage, etc. It is lower than the welding head mechanism, and its driving system should use a servo motor equipped with an encoder.

4、焊件移動或變位機構，如焊接滾輪架，頭尾架翻轉機，回轉平臺和變位機等，移動變位機構應配伺服電動機驅動。

4. Weldment movement or displacement mechanisms, such as welding roller frames, head and tail frame flippers, rotary platforms, and displacement machines, should be equipped with servo motor drives for movement and displacement mechanisms.

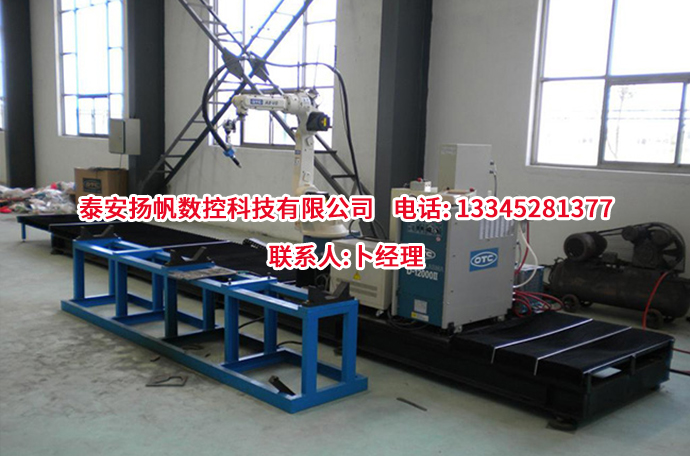

5、焊接機器人，又稱機械手臂，是山東數控焊接設備的重要組成部分。其主要工作包括：焊接、切割、熱噴涂、搬運等。

5. Welding robots, also known as robotic arms, are an important component of Shandong CNC welding equipment. Its main tasks include welding, cutting, thermal spraying, handling, etc.

6、主控制器，亦稱系統控制器，主要用于各組成部分的聯動控制，焊接程序的控制，主要焊接參數的設定，調整和顯示。必要時可擴展故障診斷和人機對話等控制功能。

6. The main controller, also known as the system controller, is mainly used for the linkage control of various components, the control of welding programs, and the setting, adjustment, and display of main welding parameters. If necessary, control functions such as fault diagnosis and human-machine dialogue can be expanded.

7、焊頭導向或跟蹤機構，弧壓自動控制器，焊槍擺器和監控系統。

7. Welding head guidance or tracking mechanism, arc pressure automatic controller, welding gun pendulum and monitoring system.

8、焊件夾緊機構。

8. Weldment clamping mechanism.

9、計算機軟件，焊接設備中常用的計算機軟件有：編程軟件，功能軟件，工藝方法軟件和系統等。

9. Computer software, commonly used in welding equipment, includes programming software, functional software, process method software, and expert systems.

在選擇數控焊接設備的時候，要從多個方面綜合進行考慮，比如設備的結構等方面來判斷，進而選到合適的產品進行運用。如果大家不知道該如何選擇的話，可以參考上述內容進行挑選。更多事項就來我們網站http://m.hk809.com咨詢！

When selecting CNC welding equipment, it is necessary to consider multiple aspects comprehensively, such as the structure of the equipment, and then select suitable products for application. If you don't know how to choose, you can refer to the above content for selection. For more information, come to our website http://m.hk809.com consulting service
